Resistors
The values that I have less than 100 of, have the quantity in brackets.
Price is $1 for 20x.
Available values in ohms:
0, 1.2, 5.6 (8), 10, 22 (97), 33 (40), 39 (80), 56 (73), 68.1 (80), 75, 82, 100, 150 (63), 220 (21),
270, 330 (80), 390 (84), 470, 510, 750, 820, 1k (90), 1.2k, 1.5k (58), 1.8k (50), 2k (79), 2k2 (57),
2.4k (44), 2.7k, 3.3k, 3.9k (20), 4.3k, 4.7k, 5.1k, 5.6k (40), 6.8k, 7.5k, 8.2k, 10k, 12k (20), 15k
(6), 18k (40), 20k, 22k, 27k, 30k, 33k, 36k (90), 39k, 47k, 56k (70), 68k, 75k, 82k (20), 100k (87),
120k (35), 150k (50), 180k (30), 220k, 270k, 330k, 470k, 510k, 560k, 620k, 680k (90), 750k, 1.1m,
1.5m, 1.8m, 2.2m (80), 3.3m (55). 5.1m, 8.2m (70)
½ watt – 56 ohm metal - 40c (19) ½ watt old style – 10 ohm – 15c (83) 120 ohm carbon – 20c (475) 120k – 15c (about 50) 33k - carbon – 20c (about 150) 3m3 – 15c (24) 1k - 15c (200) 15m – 15c (about 50) 0.6W metal film - 1.5k – 35c (80) 3.3m – 35c (6) 1 watt – 47 ohm - 40c (6) 120 ohm metal film small size – 40c (19) 150 ohm metal film – 40c (37) 270 ohm - 40c (4) 1k metal film small size – 40c (46) 3k3 - 40c (40) 47k (old style) – 25c (75) 220k metal - 40c (34) 3m3 (old style) – 25c (15) 1W metal film 100 ohm - 40c (31) 470 ohm – 40c (88) 8.2k – 40c (19) 15k – 40c (19) 24k – 40c (19) 30k – 40c (15) 180k – 40c (19) 1W carbon: 120 ohm - 20c (38) 2 Watt – 3.3 ohm – 50c (5 used) 33 ohm – 50c (1) 330k - 50c (6) 5.6k ohm –50c (60) 2 Watt metal – 20 ohm - 40c (20) 100k - 55c (3) 220k - 55c (20) 16m - 55c (2) 18m - 55c (3) 1 or 2 Watt very old style: all 30c each 82 ohm (200) 330 ohm (70) 2k7 (15) 10k (200+) 22k (150) 3 Watt metal - 20 ohm - 40c (19) 100k - 55c (26) 3 Watt carbon - 200 ohm - 45c (10) 4 Watt – 2k7 ohm ceramic – 60c (16) 270 ohm - very old stock 60c (20+) 5 Watt – 0.47 ohm ceramic – 70c (34) 4.7 ohm ceramic - 70c (1) 4k7 Philips – 70c (51) 15k – 70c (2) 200 ohm carbon 75c (5) 7W: 10 ohm - 90c (20) 1k2 - 90c (24) 10W 27 ohm - $5 (6) 220 ohm - $1.50 (3)
ICs
1x 74HCT4094E - $7 each 4x 74HCT4094D - $6 each 80x 7446N 8x A1373 & HA1118 1x AN245 CTV video 1x AN340P sound Sanyo 1x AN5250 1x AN5265 Sanyo audio TV 1x AN5435 H&V 1x AN5515 vert O/P Toshiba 1x AN5521 vert O/P 1x AN5601 National 1x HA11235 3x HA1125 7x HA1158 1x LA5112 Sanyo 10x LA7806 B&W TV deflection 1x LA7838 vert scan 1x SAB3013 Philips CTV 1x SAS580 8x SAS590 4x SN76231 & TAA630S 2x SN76570 1x ST6356B1/TL Teac TV 1x STRF6656 P/S IC Panasonic 1x TA7161 3x TA7173 1x TA7698 TV jungle 2x TBA120T 1x TBA240B 1x TBA395 Thorn CTV 1x TBA540 2x TBA800 sound O/P 15x TBA810 5x TBA810A 1x TBA820M mini audio MGA 9x TBA920 6x TCA270 1x TDA1035T audio O/P Sharp 1x TDA1170N vert O/P Goldstar 14x TDA2530 1x TDA2532 6x TDA2541 2x TDA2560 1x TDA2576 2x LA7830 vert O/P 1x LA7833 5x TDA1905 5W audio amp - $6.50 3x TDA2578A Sharp TX100 osc 1x TDA2577A 1x TDA2581 4x TDA2590 3x TDA2591 1x TDA2620 4x TDA2640 1x TDA3560 chroma O/P 1x TDA3565 chroma 1x TDA3571 Philips sync 1x TDA4580 chroma O/P 1x TDA6103Q video RGB output 1x TDA8217 Teac TV 1x UPC1365C chroma 1x UPC1377C vert drive 1x UPC1018C AM/FM 3x UPC1185H2 audio 1x UPC1182 audio 30x UPC1188 audio O/P 1x UPC1181 1x UPC1222C AM Sharp 1x UPC1238 audio amp 1x UPC1230H2 1x UPC1420 NEC CTV 1x UPC1504C video 1x UPC1505C video 1x UPD1703C020 1x UPD1708AG Sound Barrier
4580M audio dual low noise op-amp - surface mount - $2.50 (7) AH0014 (1) CA3052 (1) CA3140 BIMOS op amp (1) DM7402 (2) FUA796 (8) ICL8049 antilog amp (1) ICL8038 VCO sine square triangle - $10 (4) LB1405 (1) LB1416 (1) LB1426 (2) LD3150 (2) LF351 (1) LF351N JFET input op amp - $1.75 (10) LF355 (1) LF355 (1) LM1496 (1) LM3075 FM DET/LIM+AUD preamp (7) - used - $5 LM3086N (3) LM311N comparator (4) LM319 dual comp - $2.70 (2) LM324 quad op amp - $1.40 (7) LM324 (1) LM3401 (CA3401) quad amp (5) LM380 audio power amp - $3.60 (7) LM381 dual preamp - $4.75 (2) LM384 5W power amp - $4.95 (2) LM3900 (is used) $2 LM3905 timer (2) LM555 timer - 65c each (10) LM709 op amp (1) LM723 2V-37V 150mA reg (1) LM725 op amp (1) LM741 & UA741 single op amp - 60c (63) LM747 dual op amp (4) MC1350 (1) - used - $1.50 - can order new MC1458 (8) MC4044P Frequency Phase Detector - $4.50 (8) MC4741 (2) MM5*15N Nat (1) NE5205N 20dB 550mHz (4) NE556N dual timer (1) RCA80757 (1) TDA1022 - $24 (6) TL074 quad JFET op amp (1) UA734 metal (5) UA777 (2) XR4741 quad op amp (31) ULN2003A Darlington Transistor Array sm - $1 (9) ULN2803AG Darlington transistor array SOP18 sm - $2.45 (2) µA733PC - $10 (1) IC sockets 8, 14, 16, 18, 28 pin - all 60c each
1x 134A video head amp 1x 2073D equiv to TDA2822 8 pin audio 2x 4558D op amp 2x 4N25 1x 4N35 opto transistor 28x 4N37 opto transistor 1x 8413 Fountain video game 1x 8426 Fountain video game 1x A6393S Akai capstan 1x AM6012 D-A Casio 1x AN217 AM/FM National 1x AN7273 AM Tuner, FM/AM IF Amplifier (used) 1x AN3822K (AN3821K) 1x AN6249 auto stop 3x AN6652 - turntable motor control IC - $3.50 each 1x AN6360 video 1x AN6676 video 1x AN8275 Mitsubishi video 1x AT24C02 Goldstar CTV 1x BA3505 Sanyo preamp 1x BA3822LS EQ preamp 1x BA4422AN FM front end Sharp 2x BA6209 Akai capstan 1x BA6229 Akai video 1x BA6301 Tech 1x BA6430S capstan drive Panasonic 1x BA6435S capstan Panasonic 1x BA7172S head preamp Sharp 1x BA7279S head preamp Sharp 1x C68241Y Akai front end 1x CX136A Sanyo video 1x CX145 Sanyo video 1x CXA1019 radio Protech 1x CXA1587S Sony jungle 1x D75208CW 018 NEC video CPU 1x D7538C Funai sys-control 3x AN6755U PS start-up (Panasonic TV) - $11 each 1x GE3020 5x H11J5 1x HA1137 1x HA11724 video 2x HA1199 AM radio 1x HA12084BNT Hitachi audio 1x HA13001 1x HA1329W audio O/P 3x HA1366WR audio 1x HA1372 audio 1x HA1377 1x IR3P06 video 1x IXO715CE Sharp mem 1x IXO933CE Sharp CPU 1x KIA7668BP Toshiba preamp 1x LA1245 AM Sharp 1x LA1265 AM/FM 1x LA2110 FM 1x LA4108 audio 2x LA4446 audio 2x LA4500 audio
LA7250 Mitsubishi colour (1) M50708-611SP CPU (1) M51015L JVC remote (2) M5112Y audio O/P (3) M51408SP Mitsubishi TV CPU (1) M51517L audio (2) M54648L Hitachi motor drive (1) M54649L video loading (1) M58655P TV EPROM (2) MCP3022 triac drive (10) MN15342VQH video (1) MN15342VEE video (1) MN6030B National remote (1) MOC3041 triac driver (4) NM93C46 EPROM Sharp (1) ON3205 opto coupler (1) LM358 op amp (1) RA08-390N (2) STA341M JVC CD (1) STK4112 MKII (1) STK4211 MKII Sony amp (1) STK5339A video P/S (1) STK5392 VCR P/S reg (1) STR1096 video P/S (1) STR40090 Panasonic TV P/S (1) STR54041 P/S reg (1) STR-A6051M Power IC for PWM (1) - $9 STR-X6768 TO3P-7L SMPS IC (1) - $9 UPD75212ACW Sony CPU (1) TA8776N audio control Sony TV (1) SVI3101 equiv to RSN3502A Pana audio (1) TA7227 audio O/P (1) TA7271P audio (1) TA7273P audio (1) TA7317P protection circuit for amplifier - $6.50 each (3) TA7361AP JVC video (1) TA7613 (1) TA7668AP audio (1) TA7673P National modulator (1) TDA8361 Goldstar CTV (1) TA7680AP CTV IF (1) TA8210H audio (1) TA8225H car audio amp (1) TD6304 auto stop (1) 24C04 EPROM (1) TDA4687 RGB (1) TDA7050T mini audio (23) TDA8172 vert scan (1) TDA8362 Sharp (1) TEA5101A CRT drive (1) TMP47C433AN CPU Pro-Ser (1) TNY176PN - switch mode P/S - $4 each (3)
CD4006 - 75c each - (9) CD4009 - $2,20 each - (2) CD4010 - 85c each - (20) CD4011 - 55c each - (20) CD40106 - $1.20 each - (4) CD4012 - 65c each - (25) CD4013 - 55c each - (27) CD4016 - $2.20 each - (4) CD40160 - 85c each - (10) CD40174 - 55c each - (15) CD4020 - 85c each - (2) CD4022 - $1.80 each - (9) CD4023 - $1.20 each - (17) CD4024 - $2.50 each - (1) CD4025 - $2.20 each - (2) CD4027 - $2.30 each - (2) CD4028 - $1.85 each - (13) CD4030 - $1.65 each - (4) CD4040 - $2.20 each - (22) CD4041 - $1.80 each - (3) CD4042 - $1.20 each - (20) CD4043 - $1.25 each - (32) CD4044 - 75c each - (21) CD4047 - $2.65 each - (9) CD4049 - $2.10 each - (9) CD4050 - 95c each - (49) CD4052 - 55c each - (25) CD4053 - $2.45 each - (5) CD4060 - 85c each - (9) CD4066 - 85c each - (93) CD4069 - $1.65 each - (6) CD4070 - 55c each - (25) CD4071 - 55c each - (27) CD4072 - 85c each - (4) CD4075 - $1.80 each - (32) CD4081 - $2.30 each - (22) CD4082 - 85c each - (32) CD4510 - $2 each - (4) CD4511 - 65c each - (32) CD4512 - 65c each - (15) CD4514 - $2.80 each - (2) CD4516 - $1.20 each - (13) CD4521 - $4.20 each - (1) IC sockets 8, 14, 16, 18, 28 pin - all 60c each
LM2940CT-12 positive 12V $4.80 each (5) 78L15 - $1.20 each (25) 7912 12V 1A negative - $1.60 each (5) L7805CV +5V 1A - $1.50 each (10) L7815CV +15V 1A - $3.20 each (35) 7812CT +12V 1A - $4.20 each (15) LM317 (LM317T) 1.5A adjustable voltage - $2.50 each (11) LM320T-15 - $5.20 each (2) LM337SP - $2.20 each (4) LM341T-15 LM78M15CT 15V + reg .5A - $1.80 each (18) LM350K 3A adjustable voltage - $12.20 each (1) LM78L15ACZ 15V 100mA - $1.20 each (9) UA78M - $1.20 each (1) MC7924CT -24V 1A - $1.80 each (83)
LEDs
Rated at 5,000 MCD brightness. 20c each. red LED 3mm flat top (25) red LED 3mm dome top (45) blue LED 3mm flat top (38) blue LED 3mm dome top (100) yellow LED 3mm flat top (97) yellow LED 3mm dome top (100) green LED 3mm flat top (85) green LED 3mm dome top (70)
Blue 10mm 8,000 mcd - 25c each (37 in stock) maximun current - 20mA wavelength (nm):460 View Angle: 25 degrees Lens Type: Water clear Blue 10mm 170,000mcd super bright - 65c each (33 in stock) maximun current - 100mA wavelength (nm):460 View Angle: 40 degrees Lens Type: Water clear Green 10mm 70,000 mcd Super Bright 15° LED - 45c each (with resistor for 12V). (1 left in stock) Lens Type: Water clear DC Forward Current: 20mA Dominant Wavelength - 510 to 515 nm Viewing Angle: 15 degrees plus or minus 5 degrees Red 10mm 70,000 mcd - 45c each (38 in stock) Dominant Wavelength 625-635 nm 20mA maximum current Lens Type: Water clear Viewing Angle: 15degree Red 10mm 220,000 mcd Super Bright - 75c each (1 left in stock) max current - 100mA 0.5W viewing angle - 40° Lens Type: Water clear Dominant Wavelength - 630 nm I have mounting holders available for the LEDs at 55c each. The two different types are shown in the photos.
LED warm white (yellowish) 220,000 mcd - 85c each (46 in stock) 100mA maximum current. .5W 20-25 degree angle clear lens LED warm white 220,000 mcd - $2.50 each (6 in stock) 100mA maximum current. 40-degree angle clear lens
15c each 10mm 140,000 mcd super bright white 12° LED 25c each (with resistor for 12V). More than 100 available. The brightest single-chip LED in this range. Specifications: Material: InGaN Emitting Colour: White Lens Type: Water clear Reverse Voltage: 5.0 V DC Forward Voltage: Typical: 3.4 V Max: 3.8 V Luminous Intensity MCD: Typ: 140,000 mcd DC Forward Current: 20mA max Viewing Angle: 12 degrees plus or minus 5 degrees

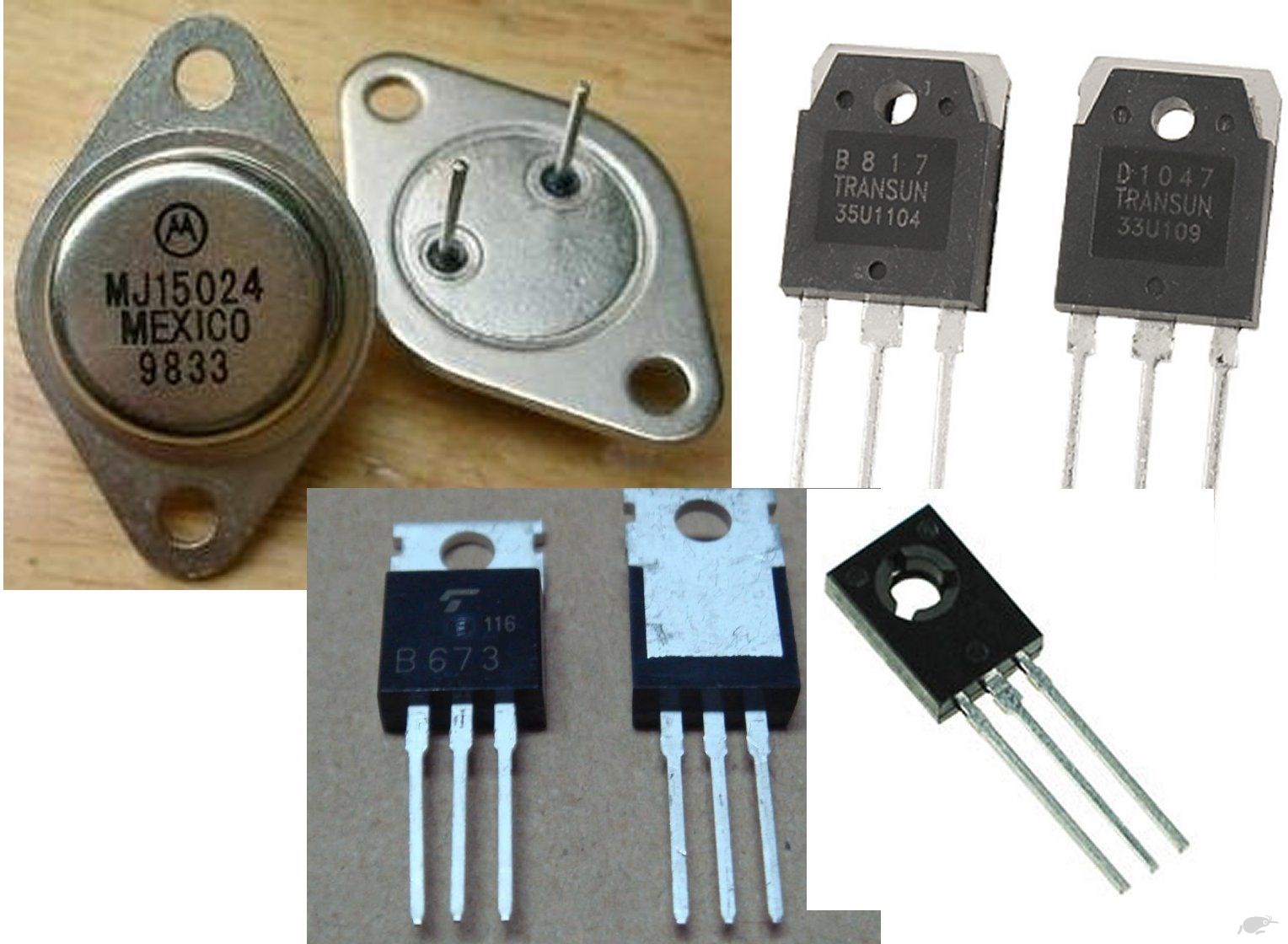

Transistors
2N3725 NPN 80V .5A - $2.50 each (5) 2N5643 NPN 65V 5A power RF Motorola - been used but ok - $18.00 each (6) 2N6292 NPN 80V 7A - $2 each (72) 2SA1360 PNP 150V .05A (NAD spare) - $4.20 each (1) 2SB546A PNP 200V 2A - $3.80 each (2) 2SB646 PNP 120V .1A - 60c each (56) 2SB646 PNP 120V .1A - 35c each (102) 2SC1447 NPN 300V .15A - $1.50 each (13) 2SD669A NPN 180V 1.5A - $1.25 each (8) 2SD1047 NPN 160V 12A NAD - $7.50 each (3) 2SD1138 NPN 150V 2A - $4.50 each (7) 2SD2560 Darl NPN 150V 15A - $8.75 each (3) 2SC4793 NPN 230V 1A - $3.80 each (1 used - can get more) BD433 NPN 22V 4A audio - $2.50 each (18) BD679 NPN Darlington + diode 80V 4A (NAD spare) - $4.50 each (3) BD131 NPN 70V 3A - $2.50 each (5) BD139 NPN 80V 1.5A - $1 each (62) BD140 PNP 80V 1A - $1 each (71) BD711 NPN 100V 12A - $3.50 each (1) BDX34C PNP 100V 10A - $3.75 each (1) BFT43 NPN 125A 1A 50MHz - $1 each (1) BFW16A NPN 40V .3A 1200MHz - $5.50 each (6) BLY97 NPN 66V 3A 175MHz - $8.50 each (2) BUZ901P mosfet n-ch - $18 each (3) MJE243 NPN 100V 4A TO-126 - $2.40 each (10) MJE253 PNP 100V 4A TO-126 - $2.10 each (10) IRF540 N-Channel MOSFET 33A 100V - $2.40 each (1) IRF9540 P-Channel MOSFET 100V 23A - $2.40 each (13) 2SC3298 NPN 160V 1.5A - $3.50 (2) BU508A NPN 1500/700V 8A - $7 (1) BUK444 MOS-N-FET 800V 1.5A - $12 (1) BUK452-60A MOSFET 60V 14A - $4.50 (3) BUX84 NPN 800V 2A - $1.25 (77) 2SA1306 PNP 160V 1.5A - $4.75 (2) NSD106 NPN 140V 1A - $2.50 (8) RCA1C12 NPN 140V 4A - $2.50 (21) RCA1C13 PNP 140V 4A - $2.50 (28) S1298 NPN 300V .1A - $3.50 (1) TIP2955 PNP 100V 15A - $3.90 (1) TIP30C PNP 100V 1A - $2.50 (1) TIP42C PNP 100V 6A - $1.80 (2) TIP122 NPN 100V 5A Darlington - $1.50 (10) STP36NF06L N-Channel STripFET™ II Power MOSFET 60V 30A - $9.20 (2) FQP17P06 P-Channel QFET® MOSFET 60V 17A - $10.50 (3) TIC5200 (2SC5200) Toshiba NPN 230V 15A - $11.50 (1) TIA1943 (2SA1943) Toshiba PNP 230V 15A - $11.50 (1) GT 30F131 MOSFET 360V 200A @3 µs Surface Mount - $2 (6) IRFB4321 HEXFET Power MOSFET 150V 85A - $4 (2) RJP30H1 transistor Silicon N-Ch IGBT hi-speed power switching 360V 30A (6) - $2 Larger packages - TO-3 etc 2N4347 NPN 140V 5A - $5 (1) 2N6242 - $2.50 (1) 2N6609 PNP 160V 16A - $7.50 (6) 2N3773 NPN 160V 30A (ON brand) - $7.50 (5) 2SA757 PNP 120V 7A - $6 (6) 2SC685A NPN 300V .1A - $4 (1) 2SC897 NPN 150V 7A - $6 (1) (been temporarily tacked into a test circuit, but is a good one) 2SD320 NPN 300V 2A - $4 (1) MJ15004 PNP 140V 20A - $7.50 (5) MJ9615B - $2 (3) MJ2955 - $5 (1)
2N2222A NPN 40V .8A - $1 (5) 2N4401 NPN 60V .6A - $1 (1) 2N4403 PNP 40V .6A - 25c (58) 2N6714 NPN 30V 1A - 25c (13) 2N6725 NPN Darl 60V 1A - 35c (2) 2SA673 PNP 35V .5A - 25c (7) 2SA1145 (mate for 2SC2705) - 50c (7) 2SC2705 (mate for 2SA1145) - 50c (7) 2SB544 PNP 25V 1A - 80c (9) 2SC371 NPN 35V .1A - 10c (47) 2SC386A NPN 20V .02A - 10c (200) 2SC1740 NPN 50V 150mA - $1.20 (9) 2SC1906 NPN 30V .05A - 10c (7) 2SC2240 NPN 120V 100mA - $1.80 (100) 2SA970 PNP 120V 100mA (mate for 2SC2240) - $2 (45) 2SD400 NPN 25V 1A - 80c (3) BC238B&C NPN 30V .1A - 10c (8) BC318B NPN 40V .15A - 10c (17) BC327 PNP 50V .5A - 20c (50) BC337 NPN 50V .5A - 20c (189) BC546B NPN 65V .1A - 25c (45) BC547B NPN 45V .1A - 15c (432) BC550 NPN 50V .1A - 10c (8) BC557 PNP 45V .1A - 15c (705) BC558B NPN 30V .1A - 10c (11) BC639 NPN 100V 1A - 35c (2) BC640 PNP 80V 1A - 95c (5) BF197 NPN 40V .025A - 10c (3) BR101 NPN 90V 5A RF - 50c (very old stock, some been soldered) (15) BSX21 NPN 120V .05A - 50c (11) MD8002 dual transistor NPN 50V 30mA TO-99 - $2.50 (101) KTC3200-BL NPN 120V 100mA - $1.60 (34) MPSA43 NPN 200V .5A - 30c (41) PN3567 NPN 80V 1A - 30c (46) PN3638A PNP 25V 1A RF - 30c (19) BSS110 P-channel D-MOS transistor 50V 170mA - $5 (4) W1P NPN 40V 600mA surface mount SOT23 (PMBT2222A) 40c (98) old stock: some have been soldered for testing BF422 NPN 250V .2A - 30c (16) BF423 PNP 250V .2A - 30c (8)
Capacitors
100pF 1kV ceramic - 70c each (41) 1nF ceramic (5.5mm) - 20c each (59) 2.2nF 1kV ceramic - 90c each (94) 220pF 50V ceramic - 20c each (53) 220pF 2kV ceramic disc - $3.50 each (1) 20nF 1000V ceramic - old stock - $1.60 each (4) 270pF ceramic plate (Philips) - 20c each (53) 27pF ceramic - 20c each (197) 330pF 50V ceramic - 20c each (191) 33pF 50V ceramic disc- 20c each (45) 33pF 50V ceramic plate - 25c each (40) 39pF ceramic plate - 20c each (106) 560pF 50V ceramic - 20c each (38) 6.8nF ceramic - 20c each (39) 8.2pF ceramic plate - 20c each (24) 82pF ceramic plate - 20c each (43)
100nF 100V mylar 28c each - (3) 120nF 100V mylar 30c each - (39) 12nF 100V mylar 25c each - (92) 12nF 50V mylar 20c each - (75) 15nF 50V mylar 20c each - (65) 180nF 50V mylar 50c each - (13) 18nF 100V mylar 25c each - (96) 1nF 100V mylar 25c each - (8) 1.2nF 100V mylar 25c each - (64) 1.8nF 100V mylar 25c each - (88) 220nF 100V mylar 60c each - (36) 220nF 200V mylar 85c each - (7) 270nF 100V mylar 55c each - (96) 27nF 100V mylar 30c each - (65) 2.7nF 100V mylar 25c each - (88) 330nF 100V mylar 60c each - (35) 390nF 50V mylar 50c each - (8) 39nF 100V mylar 35c each - (86) 3.3nF 50V mylar 20c each - (163) 47nF 50V mylar 25c each - (81) 4.7nF 50V mylar 20c each - (2) 4.7nF 100V mylar 25c each - (50) 5.6nF 50V mylar 20c each - (35) 68nF 100V mylar 50c each - (40) 82nF 50V mylar 25c each - (44)
All are PC mount unless otherwise stated. The number in brackets is the quantity of stock on hand for that item. Prices are for each capacitor. 105 degrees 10,000uF 80V snap in can - $16 (2) 1000uF 16V - 90c (7) 1000uF 25V - $1.35 (8) 1000uF 35V - $1.85 (5) 1000uF 63V - $3.25 (6) 100uF 16V - 35c (3) 100uF 25V - 40c (29) 100uF 50V - 65c (3) 100uF 450V - $6.50 (1) 10uF 63V - 30c (40) 10uF 450V - $2.55c (9) 1uF 50V - 35c (1) 1uF 400V - 90c (20) 2200uF 50V - $2.25 (14) 220uF 63V - $1.15c (1) 22uF 25V - 40c (1) 22uF 50V - 45c (7) 22uF 63V - 55c (18) 22uF 200V - $1.80c (2) 22uF 450V - $2.95c (7) 33uF 50V - 65c (5) 4.7uF 50V - 30c (15) 4.7uF 450V - $1.44 (2) 47uF 25V - 30c (12) 47uF 50V - 40c (1) 47uF 63V - 55c (14) 47uF 450V - $3.90 (5) 470uF 25V - 90c (16) 470uF 35V - $1.15 (9) 470uF 63V - $1.45 (11) 4700uF 16V - $2.55c (4) 680uF 16V - $1.00 (2) 6800uF 16V - $5.50 (2) 6800uF 25V - $5.75 (2) 85 degrees 0.1uF 50V - 10c (85) 10uF 25V - 10c (15) 150uF 200V can - $3 - 1 only - been soldered for test. 1000uF 63V - $2.35 (6) 100uF 25V - 15c (41) 2.2uF 50V bipolar PT (have shortened legs) - 20c (18) 2.2uF 50V - 10c (7) 2.2uF 350V - 50c (7) 22uF 16V - 15c (8) 33uF 25V - 10c (10) 33uF 50V - 15c (100) 4.7uF 63V - 10c (71) 4.7uF 250V - 45c (32) 4.7uF 350V - 85c (6) 470uF 63V - $1.20 (6) 470uF 6.3V - 20c (39) 470uF 200V can - $4.50 (2) - been briefly tacked into a circuit for test. 470uF 16V - 20c (13) bipolar - 3.3uF 50V - 30c (52)
Metallized Polypropylene Film capacitors: 10nF 630V CBB P10 - 80c (4) 10nF 1000V - $3.50 (1) 22nF 630V CBB21 - 85c (15) 2.2nF 630V CBB13 P10 - $1.40 (4) 2.7nF 1250V 272K CBB 5% - $3.30 (10) 220nF MKP10 1000V dc 600V ac WIMA - $7.50 (1) 2.2uF 250V - $1.80 (4) 510nF 200V - $2.30 (18) 47nF 630V P10 CBB - 85c (2) 470nF 100V P10 - 85c (6) 470nF 250V P15 - $1.20 (8) 680nF 100V Wima - 50c (79) 680nF 200V - $2.50 (2) 8.2nF 1.5kV - 90c (2) 680nF 630V - $3.20 (4) 2uF 450V AC CBB61 motor start cap. with wires and mounting tab (see 2nd photo) $6.50 (1) polyester: 3.9nF 500V - 50c (4) 470nF 400V - $1.50 (4) 470nF 630V - $3.20 (16) 560pF 100V - 30c (37) 56nF 1.2kV - 50c (5) Various - polypropylene, silver mica etc: 270nF 100V - $1.60 (6) 1uF 250Vac Philips - $3.90 (3) 22pf 500V silver mica - $3.50 (2) 270pF 500V silver mica - $3.40 (6) 3.3nF 250V - 50c (15) 4n7 500V silver mica (Russian military surplus) - $2.65 (7) 4.7nF 250V - 50c (3) 47nF 250V - 50c (22) 8.5nF 2kV - 90c (11) very old stock: 100nF 300Vac 600Vdc Plessey $1 (14) (see 3rd photo) 47nF 160V (pigtail) 30c (50+)
Other Components
Transient Voltage Suppressor Diodes - P6KE51A 43.6 V - $2 each (48) P6KE120A 102 V - $2 each (36) zener diodes - small size unless otherwise stated. all 10c each unless otherwise priced. 3V9 - (59) 5.6V 1N5339B 5W - $1.55 each - (out of stock) 7V5 - (76) 8V2 - 88) 13V - (41) 16V - (68) 20V 1W 1N4747 BZX85C20 - 65c each - (3) 1N5388B Zener diode 200V 5W DO-15 - $2 each - (45)
1/ 43mm dia x 18mm h - has 2 grub screws. 2 only. $3.50 each. 2/ 15mm dia x 14mm h - splined - 7 in stock - 80c each 3/ 21mm dia x 19mm h - old stock - $1.20 each - more than 10 in stock 4/ 21mm dia x 16mm h - old stock - $1.80 each - more than 10 in stock

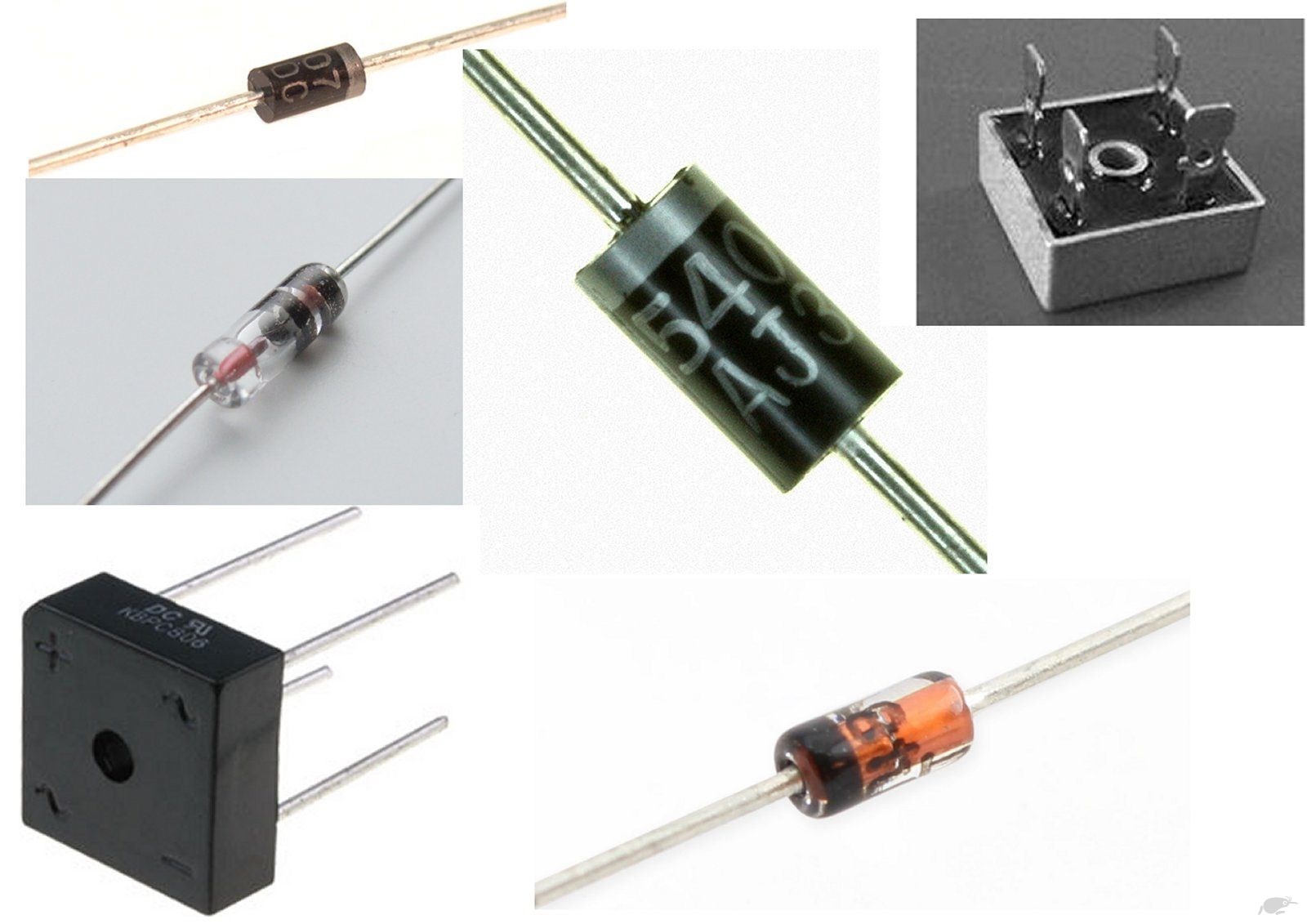

1N4007 1KV 1A - 15c (119) 1N4148 100V 200mA General Purpose - 10c (86) 1N5404 400V 3A - 55c (21) 1N5408 1000V 3A - 75c (41) 10A10 diode 10A 1000V - 90c (115) RGP10D 200V 1A fast recovery - $2 (19) 3B0A - 20c (8) 3B4J - 20c (4) 1N34A germanium - 65c (50) 1N34A germanium point contact (old style) - 95c (10) BY228 1500V 3A - $2.20 (2) BY229-800 11A - $2.50 (2) SR5100 100V 5A Schottky - $1 (17) SR5200 (MBR5200) 200V 5A Schottky diode - $1.80 (10) MBR10100CTL 10A 100V double diode Schottky TO-220 - $1.80 (9) B30H100G Switch-mode Power Rectifier 100 V, 30 A (double diode) - $13.40 (4) RF2001 T3D 20A(av) 300V (350V repetitive peak) fast recovery, dual diode, common cathode - $4 (5) RGP10D fast Recovery Rectifier Diode 200V 1A - $2 (18) DB107S 1000V 1A bridge surface mount - 60c (5) SF5A400HD Ultrafast Recovery Rectifier 400V 5A (s.m.) $2 (3) Surface mount Schottky Diodes 30V 200mA - - BAT54 - $3 for x10 - (50) Bridge rectifiers - BR305 50V 3A 50A-surge bridge - $1.20 (35) GBU606 bridge 600V 6A (420V rms) - $4.80 (10) KBPC3510 1kV 35A Bridge Rectifier - $9 (5) BR3010 Bridge Rectifier 1000V 30A (metal case) - $8.50 (1)
High quality professional grade slider control knobs (not all shown in the photo). They fit the standard tapered shaft that is on most audio gear. Details in photo. If you want more detail, please ask. These are brand new, older model. 30c each
DC plugs: 2.1mm x 5.5mm x 14mm - $1 each (7 available) 2.1mm x 5.5mm x 9mm - $1 each (5 available) 2.5mm x 5.5mm x 14mm - $1 each (4 available) 3mm x 6.2mm x9mm - $2.50 each (6 available) 1.3mm - $2 (1 only) DC camera female plug 4mm x 1.7mm. - $4.50 (3) 5mm x 9.5mm with 1.1mm pin inside. As used by Makita power tools. See inset at center bottom of photo. - $3.50 each (3 available) DC inline sockets: 2.1mm $1 each (1 available) 2.1mm p-wired (see second photo) $1.20 each (4 available) 1.65mm - $2.50 (1 only) 2.5mm - $1.50 (1 only) DC chassis mount socket: 2.1mm (11mm chassis hole) takes 2.1mm x 5.5mm DC plug. (see second photo inset) - $3.85 (6) USB plug (std size) - 95c each (5) USB PCB socket (std size) $2 each (9) mini USB plug - $1 each (4) micro USB PC mount socket (micro USB type B) - $1 each RJ45 CAT5 Ethernet Lan Network Plug - 40c each

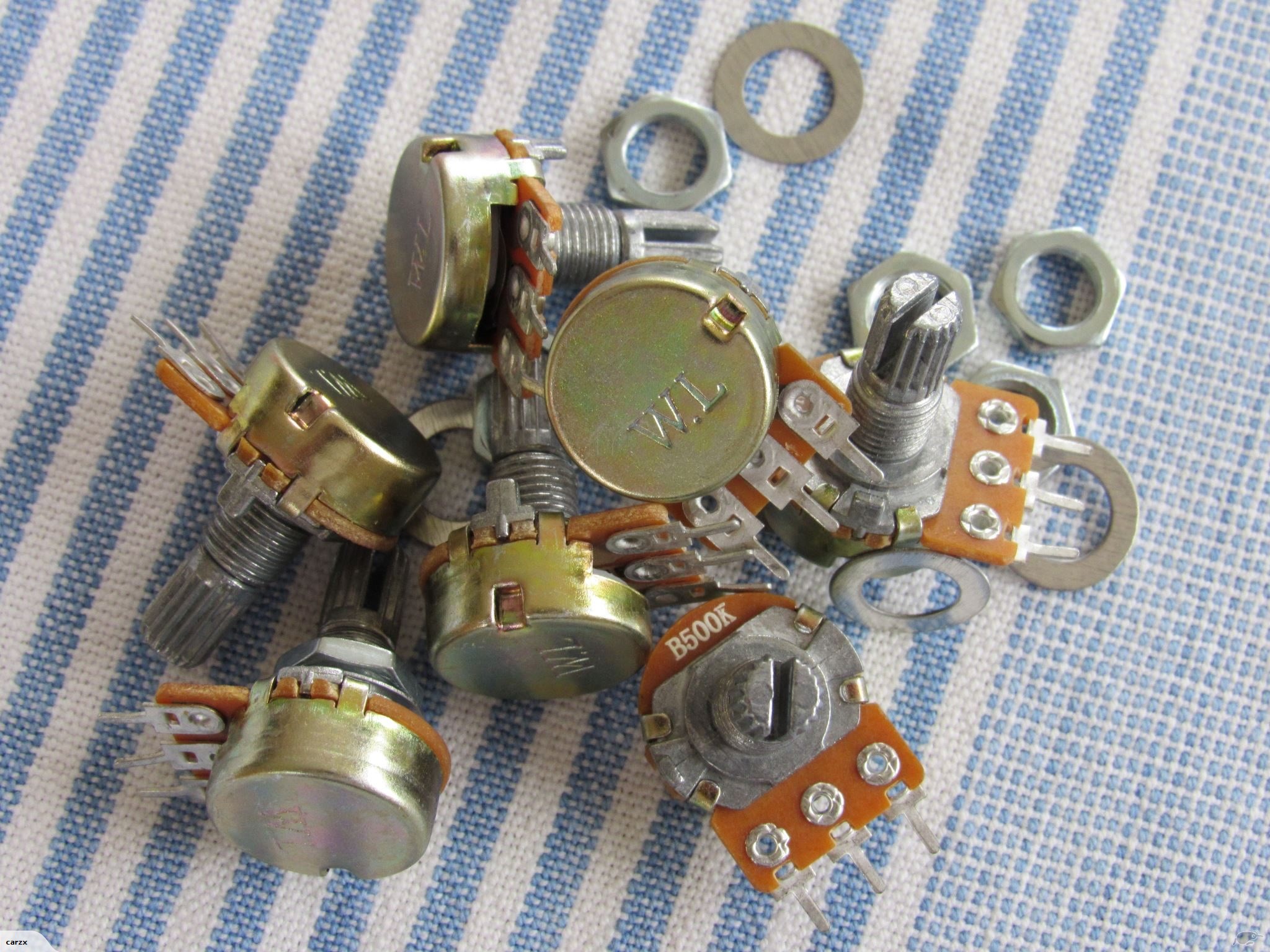

Potentiometers (rotary pots): $5 each. 100k dual splined large (1) 100k dual splined (3) 10k dual linear (15) 10k dual linear splined small (19) 10k linear dual (5) 10k linear dual (1) 10k linear dual splined (8) 10k single log splined (1) 10KA + 10KB + SW car stereo (30) 250k linear single splined small (10) 10k single linear - small size, smooth long shaft. (89) $1.50 single small with short splined shaft - $1.50 each: 5k lin. (6) 20k lin (5) 50k lin (3) 500k lin (7) 500k log (2) slider pots: $6 each: 1k (19) 20k (2) 2k (1) 50k linear (67) mini vertical presets: 70c each: 10k (1) 30k (4) mini horizontal presets: 70c each: 10k (1) 1m (4) 1m (6) 1k (35) 4.7k (2) 100 ohm (4) 200 ohm (copal) (14) medium vertical presets: 80c each: 10k (2) 2.5k (2) 5k (7) medium horizontal presets: 80c each: 10k (6) 220 (4) 22k (1) 2k (1) 2.2k (4) 47k (3) 4.7k (5) 220k (3) large vertical presets: $1 each: 1k (1) 47k (2) large horizontal presets: $1 each: 2.2k (52) 47k (2) 4.7k (1) 4.7m (3) multiturn preset: $1.50 each: 100k 20 turn (18) wire wound preset: $4 each 100 ohm (1) - old/used
T6431D 400V 30A triac - $5 each (4) - stud mount with heavy wires. BTA06-600S 600V 6A 6mA gate triac - $2.10 each (6) BTA140-800 triac 25A - $6.60 each (4) BTB06-600B triac 600V 6A 50mA gate - $1.40 each (3 +2 used) BT139F Triac 500V+600V 16A 60mA - $1.80 each (14) Diac Speedrite AN7 & AN9 - $1.00 each (2) Diac DB3 (eqiv BR100-03) 32V-36V max 2A - 80c each (44) DO201YR diac 32V 2A - $1.00 each (5) G4000D GTO SCR 10A RCA - $1.00 each (1) RCA41015 triac - $2.20 each (7) S2512NH 800V 25A SCR - $2.60 each (3) S6015L 600V SCR - $2.80 each (2) - these last two have been temporarily tacked into circuit for test purposes.

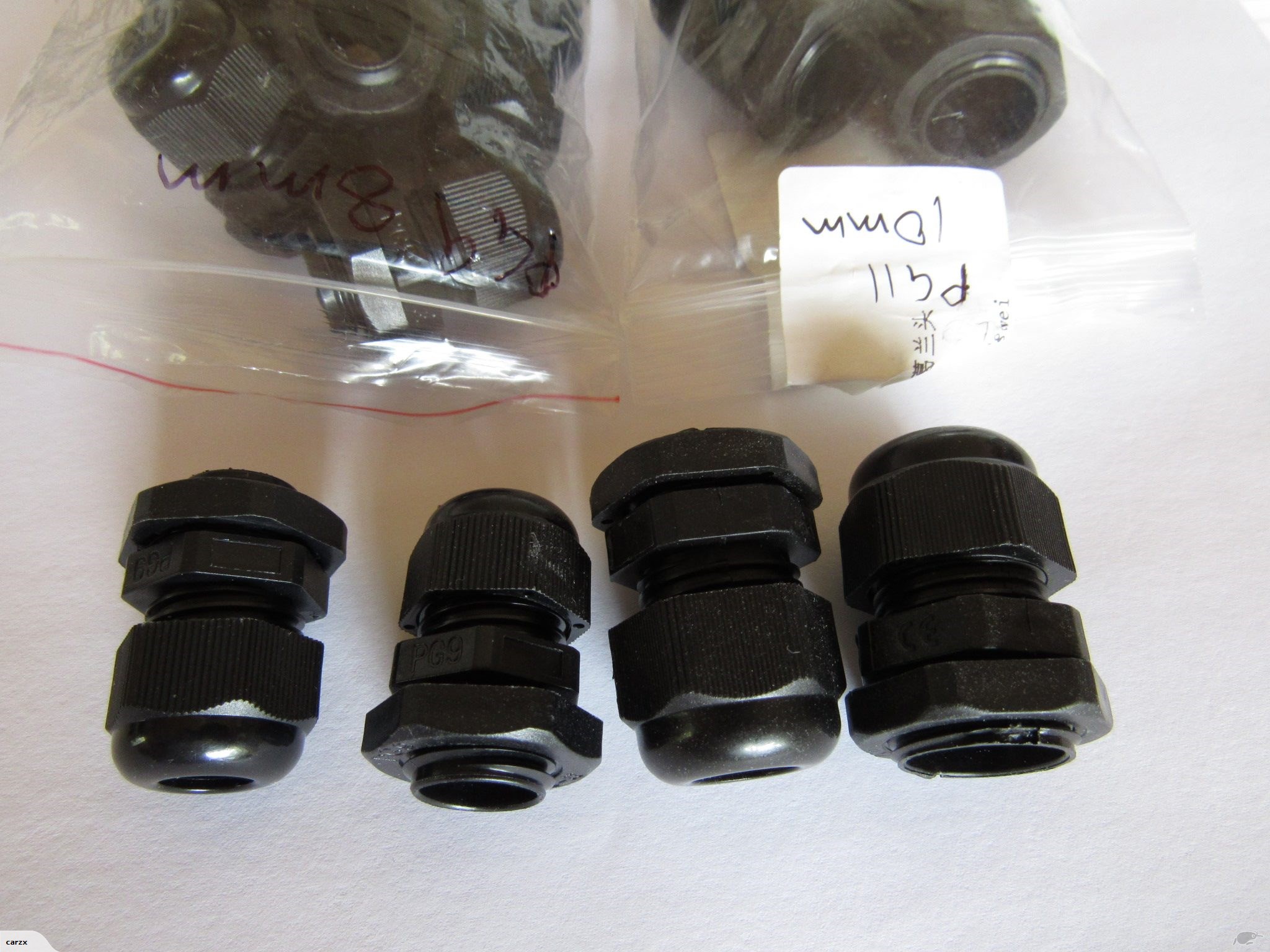

$1.50 each IP68 (PG7) M12x1.5 for up to 8mm cable (6 in stock) PG9 for up to 8mm cable - black (7 in stock) PG9 for up to 8mm cable - greyish white (2 in stock)
